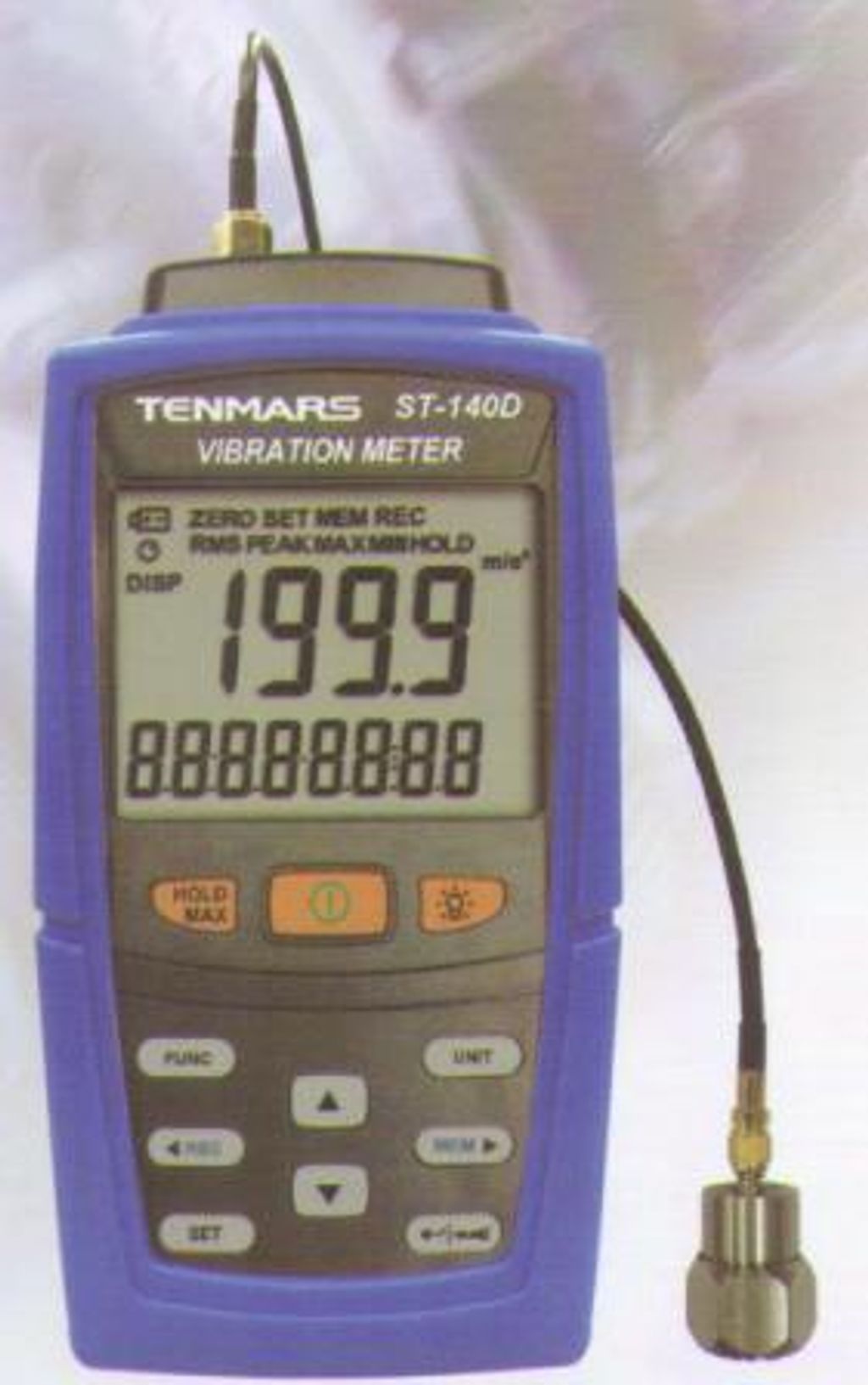

Vibration Meter (ST-140D)

RM 0.00

Model : ST-140D

Features :
- Wide frequency range of 10 Hz to 5 KHz
- Meets ISO 2954 sensor for accurate measurement
- Frequency :-
Lo range : 10 Hz ~ 1 KHz meets ISO 2954-2012 measurement
Hi range : 10 Hz ~ 5 KHz
- Data logger with 9999 records capacity
- Resolution : 0.1 m/s2, 0.01g, 1ft/s2, 0.1 mm/s, 0.01 cm/s, 0.01 inch/s, 0.001 mm, 0.001 inch
- Acceleration, velocity and displacement measurement
- Vibration sensor with magnetic adapter on 1.2M (47.2") cable
- MAX reading
- Auto power off with disable function
- Offset adjustment used for zero function

Specifications :

Measurement frequency range	Acceleration	10 Hz - 1 KHz (Lo); 10 Hz - 5 KHz (Hi)
	Velocity	10 Hz - 1 KHz
	Displacement	10 Hz - 1 KHz
Measurement range	Acceleration	0.5 - 199.9 m/s2, 0.05 - 20.39g, 2 - 656 ft/s2
	Velocity	0.5 - 199.9 mm/s, 0.05 - 19.99 cm/s, 0.02 - 7.87 inch/s
	Displacement	0.005 - 1.999 mm, 0.002 - 0.078 inch
Function	Acceleration / Velocity	RMS, Peak, Max hold, Hold
Function	Displacement	Peak-Peak, Max hold, Hold
Accuracy		+/- (5% reading + 5 digits), ref 79.4 / 158 Hz, 23 deg. C, < 80% RH
Dimension		156 x 73 x 35 mm (L x W x H)
Power supply		1.5V, AAA x 6 pcs
AC adapter		AC 100 - 240V to DC 9V / 0.5A

Terms & Conditions :

The above picture is for illustration only
All the above descriptions are subject to change without notice
Delivery charges will apply to buyers from Sabah, Labuan & Sarawak
International buyers, kindly contact us for shipping charges
Free Shipping Within Peninsular Malaysia Only
Delivery : approx. 3 to 5 working days ( Peninsular Malaysia )
approx. 7 to 10 working days ( Sabah, Labuan & Sarawak, subject to courier delivery schedule )
Country of origin : Taiwan
Warranty : 1 year against manufacturing defects only
