Tachometer (TM4100D)

RM 0.00


Model no : TM-4100D

Features :

- Large LCD 6 digits with backlit
Contact & non-contact measurements in 1 combo kit
Measuring by the output of red visible-spectrum light containing the signal to the tap or plate & receiving the signal from the reflective light
Measurement distance : 40 ∼ 500 mm ( 1.58 ∼ 19.7" )
USB datalogger up to 20,000 data
Auto-range
Average
Max / Min
Auto power off
Hold
Buzzer (on/off)

Specifications :

 Display 6 digits backlit LCD
 Detection distance 40 to 50 mm (1.58 to 19.7")
 Measuring indicator The LCD displays "RING" with a buzzer sound (or off)
 Sampling period 62.5 ms to 2 s
 Operating temp / humidity 0 to 40°C; 25 to 75% RH
 Storage temp / humidity -10 to 60°C; 0 to 80% RH
 Power supply 9V battery
 Maximum rated power 0.5 VA
 Battery life about 30 hours (buzzer off)
 Dimensions approx. 186 x 76 x 36 mm (LxWxH)
 Weight approx. 200g
 Accessories battery x 1, carrying case x 1, reflective tape x 1 sheet



Mode
Range
Contactless measurement

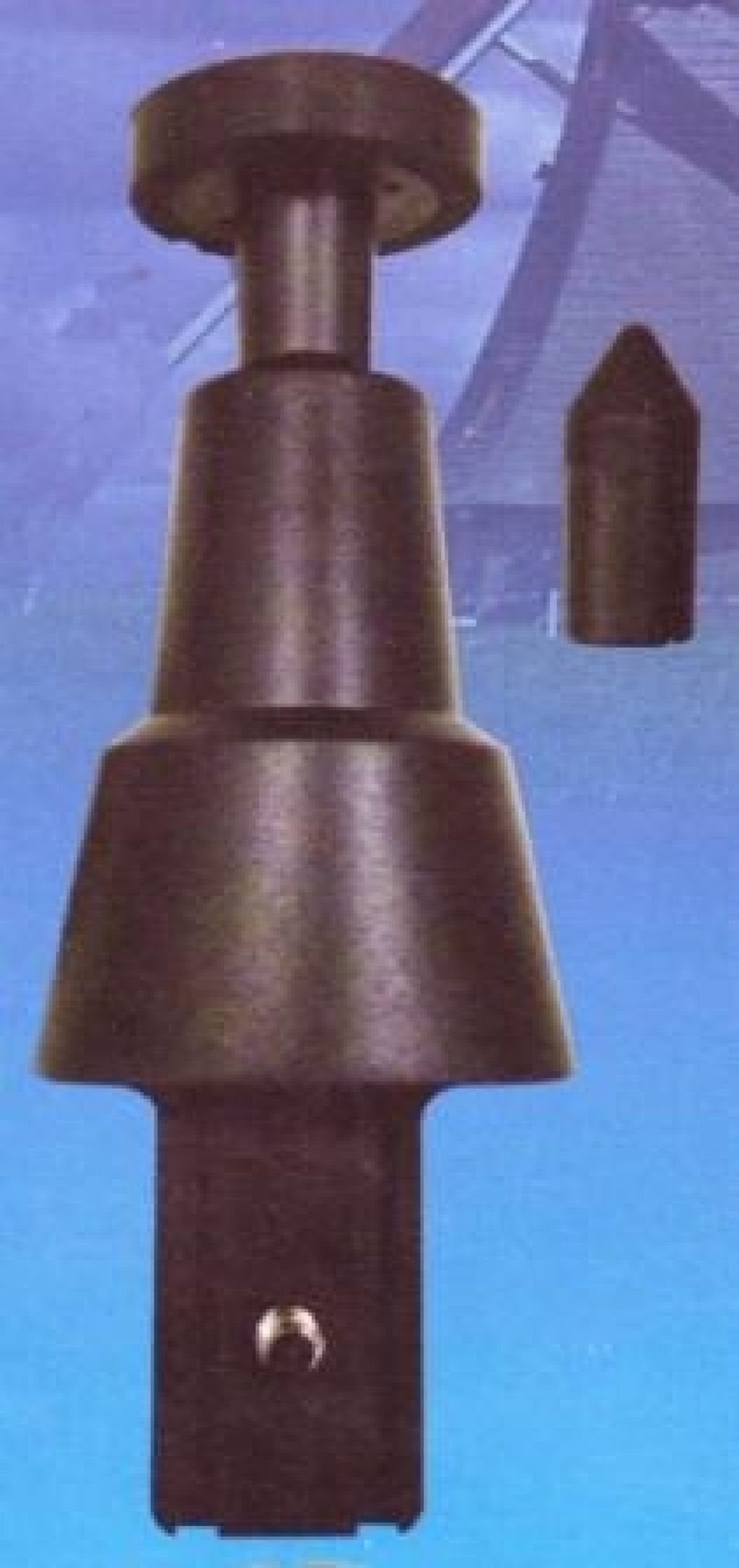

Contact measurement
AVG=ON
AVG=OFF
AVG=ON
AVG=OFF
Rotation
speed measurement
(r/m)
1
30.00 to 199.99
--------
15.00 to 199.99
---------
2
200.0 to 1999.9
300.0 to 1999.0
200.0 to 1999.9
150.0 to 1999.0
3
2000 to 19999
2000 to 19990
2000 to 19999
2000 to 19999
4
20000 to 99990
20000 to 99990
-----------
----------
Rotation
speed measurement
(r/s)
1
0.5000 to 1.9999
----------
0.2500 to 1.9999
----------
2
2.000 to 19.999
5.000 to 19.990
2.000 to 19.999
2.500 to 19.990
3
20.00 to 199.99
20.00 to 199.90
20.00 to 199.99
20.00 to 199.90
4
200.0 to 1600.0
200.0 to 1600.0
200.0 to 333.0
200.0 to 333.0



Period measurement  (ms)

0.6000 to 1.9999
0.6000 to 1.9990
-------------
-----------

2.000 to 19.999
2.000 to 19.990
3.000 to 19.999
3.000 to 19.990

20.00 to 199.99
20.00 to 199.90
20.00 to 199.99
20.00 to 199.90

200.0 to 1999.9
-----------
200.0 to 3999.9
200.0 to 399.0
Count measurement (conunt)

0 to 999999 (input conditions up to rotational speed measurement upper limit)



Speed measurement
Range
AVG ON
AVG OFF
m / min
1
1.500 to 19.999
-----------
2
20.00 to 199.99
15.00 to 199.90
3
200.00 to 1999.9
200.0 to 1999.0
m/s
1
0.0250 to 1.9999
0.2500 to 1.9990
2
2.000 to 19.999
2.000 to 19.990
3
20.00 to 33.30
20.00 to 33.30



Accuracy
AVG ON
AVG OFF
Up to 9,999 counts
±1 dgt
±10 dgt
10,000 counts
±2 dgt
±20 dgt
20,000 counts or more (r/min mode only)
±20 dgt
±100 dgt
Period measurement only
±0.5% rdg is added to above mentioned accuracy

User guide for tachometer TM4100D Click-here
