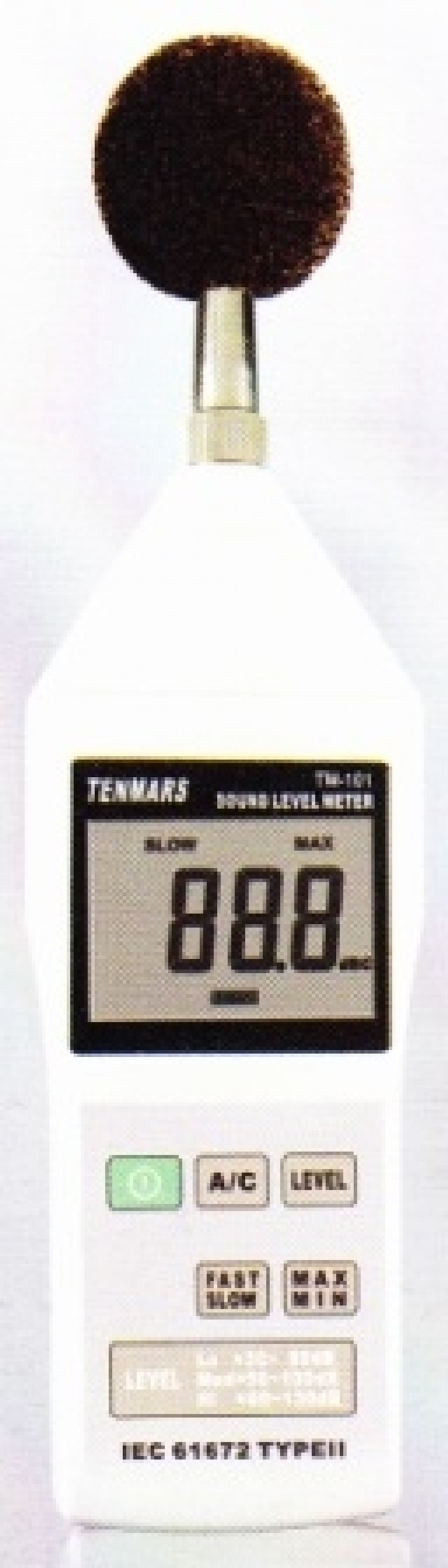

Sound Level Meter (TM101)

RM 0.00


Model no : TM-101

Display :
-  3-1/2 digits LCD display with max reading of 2000

Features :
- Test range : 30 to 130 dB
- According standard : EN61672 type 2

Specifications :

Data holdNo
Max/MinYes
AC/DC signal outputYes
USB interfaceNo
Auto rangingNo
Auto power offNo
Data loggerNo
Backlit displayNo
Microphone1/2 inch electret condenser microphone
Resolution0.1dB
Accuracy±1.5dB (ref. 94dB at 1KHz)
Level rangeLO : 30 to 80dB
MED : 50 to 100dB
HI : 80 to 130dB
Frequency weightingA,C
Time weightingFast, Slow
Dynamic range50dB
Frequency range31.5Hz to 8KHz
Size280 x 80 x 32 mm (LxWxH)
Weight300g (inclusive of battery)

User guide for sound level meter TM101 Click-here


Terms & Conditions :

  • The above picture is for illustration only
  • All the above descriptions are subject to change without notice
  • Delivery charges will apply to buyers from Sabah, Labuan & Sarawak
  • International buyers, kindly contact us for shipping charges
  • Free Shipping Within Peninsular Malaysia Only
  • Delivery : approx. 3 to 5 working days ( Peninsular Malaysia )
                    approx. 7 to 10 working days ( Sabah, Labuan & Sarawak, subject to courier delivery schedule )
  • Country of origin : Taiwan
  • Warranty : 1 year against manufacturing defects only

    REMARKS : For warranty claim :-
    - There is NO one to one exchange
    - Instrument need to sent back to manufacturer for rectification, repair & re-calibration
