RTD Cable ( TC-RTD-0.25x19 )
Heavy Duty-FEP Sheathed RTD Cable For Exhaust Gas Temperature Sensor
High system accuracy and withstand temperature range up to 300°C for economy, durability and mechanical strength used.
It is also tough and resistant to flame, abrasion and moisture.

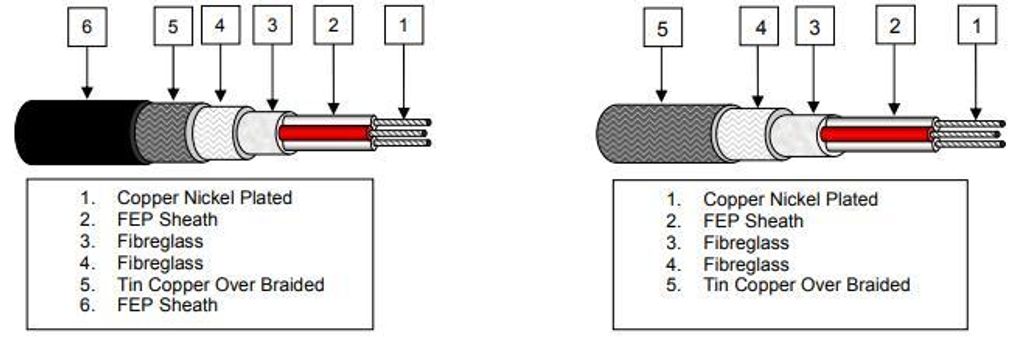

Construction : Conductors made of twisted strands of nickel-plated conductor with single FEP sheath and covered with fiberglass ropes with external copper tinned outer braiding with or without overall FEP sheath.
Working voltage | 900 V |
Test voltage | 2500 V |
Measuring temperature range | -199 to 800°C |
Part no | Colour code | Conductor (mm) | Outer diameter (mm) |
TC-RTD-0.25x19 (FEP/FG/PB/FEP) x 3C | 2 ( White ) & 1 ( Red ) | 19 x 0.25 | 6.10 |
TC-RTD-0.25x19 (FEP/FG/PB) x 3C | 2 ( White ) & 1 ( Red ) | 19 x 0.25 | 5.20 |
