Power Meter (TM206)
RM 390.00
Note : " Flash Sale "
" Stock Clearance "
Model : TM-206
Display :
- 3-1/2 digits LCD with max reading 2000
Features :
- End-mount light sensor
- Select either power or transmission
- Select either W/m2 or BTU/(ft2*h) units
- Data hold/max/min modes
Applications :
- Solar radiation measurement
- Solar power research
- Physics and optical laboratories
- Identify high performance windows
- Simple to use general data
Specifications :
| Display | 3-1/2 digits, max indication 2000 |
| Range | 2000 W/m2, 634 BTU/(ft2*h) |
| Resolution | 0.1 W/m2, 0.1 BTU/(ft2*h) |
| Accuracy | typically within ±10W/m2 (±3 BTU/(ft2*h)) or ±5%, whichever is greater in sunlight; additional temperature induced error ±0.38W/m2/°C (±0.12BTU/(ft2*h)/°C) from 25°C |
| Drift | |
| Over-input | display shows "OL" |
| Sampling time | approx. 0.25 seconds |
| Battery | 9V |
| Battery life | approx. 100 hours |
| Operating temp & humidity | 0 to 50°C below 80% RH |
| Weight | approx. 150g |
| Dimension | 130 x 55 x 39 mm (LxWxH) |
Tips on buying security tints
(source : The Star 02/04/14)
Price for protection holster (PH01)
User guide for power meter TM206

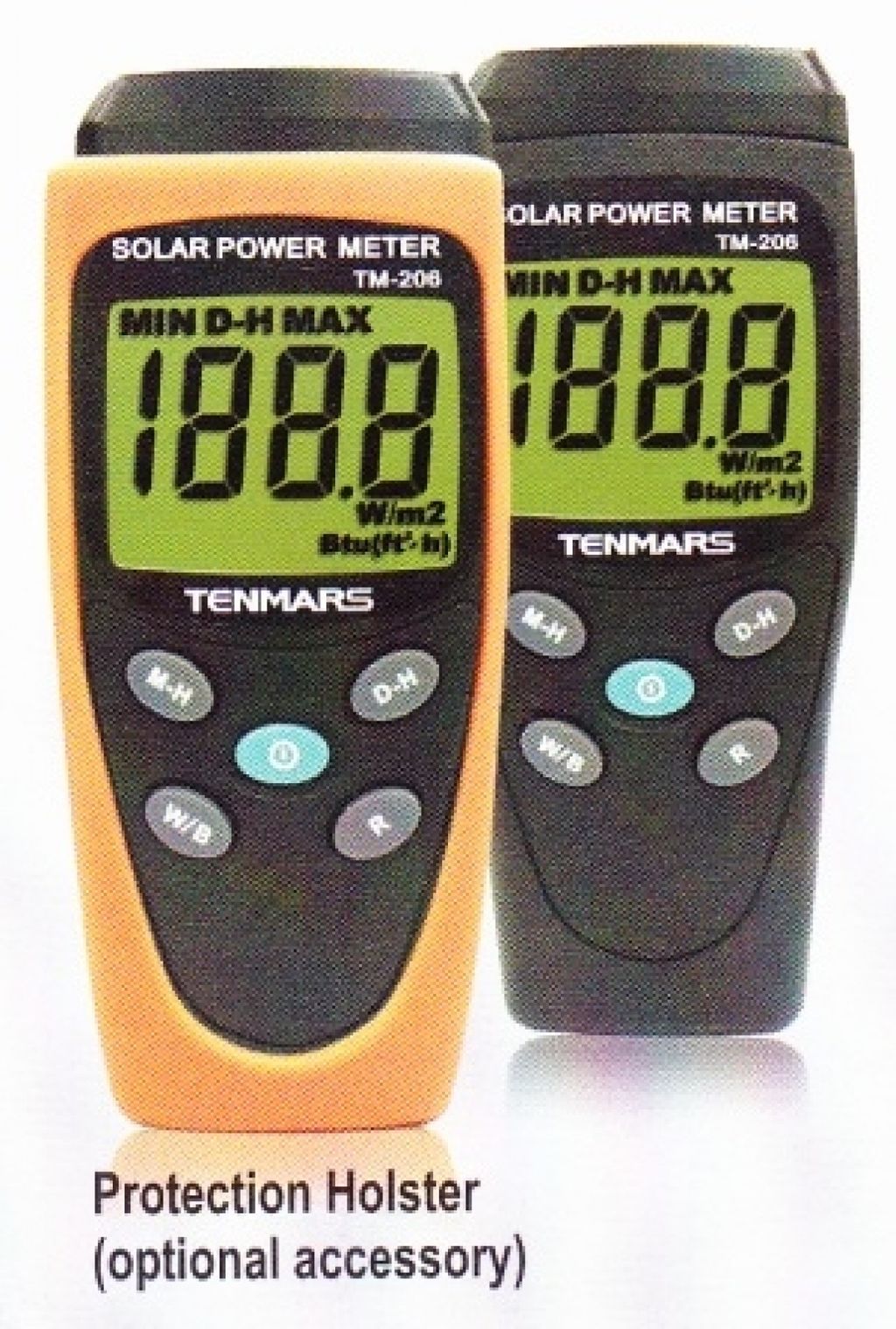

Protection holster (orange colour) is optional accessory. Not included with the unit. Need to purchase separately.
Terms & Conditions :
- The above picture is for illustration only
- All the above descriptions are subject to change without notice
- International buyers, kindly contact us for shipping charges
- Country of origin : Taiwan
- Warranty : NO
- Item sold is on a " as is " basis
