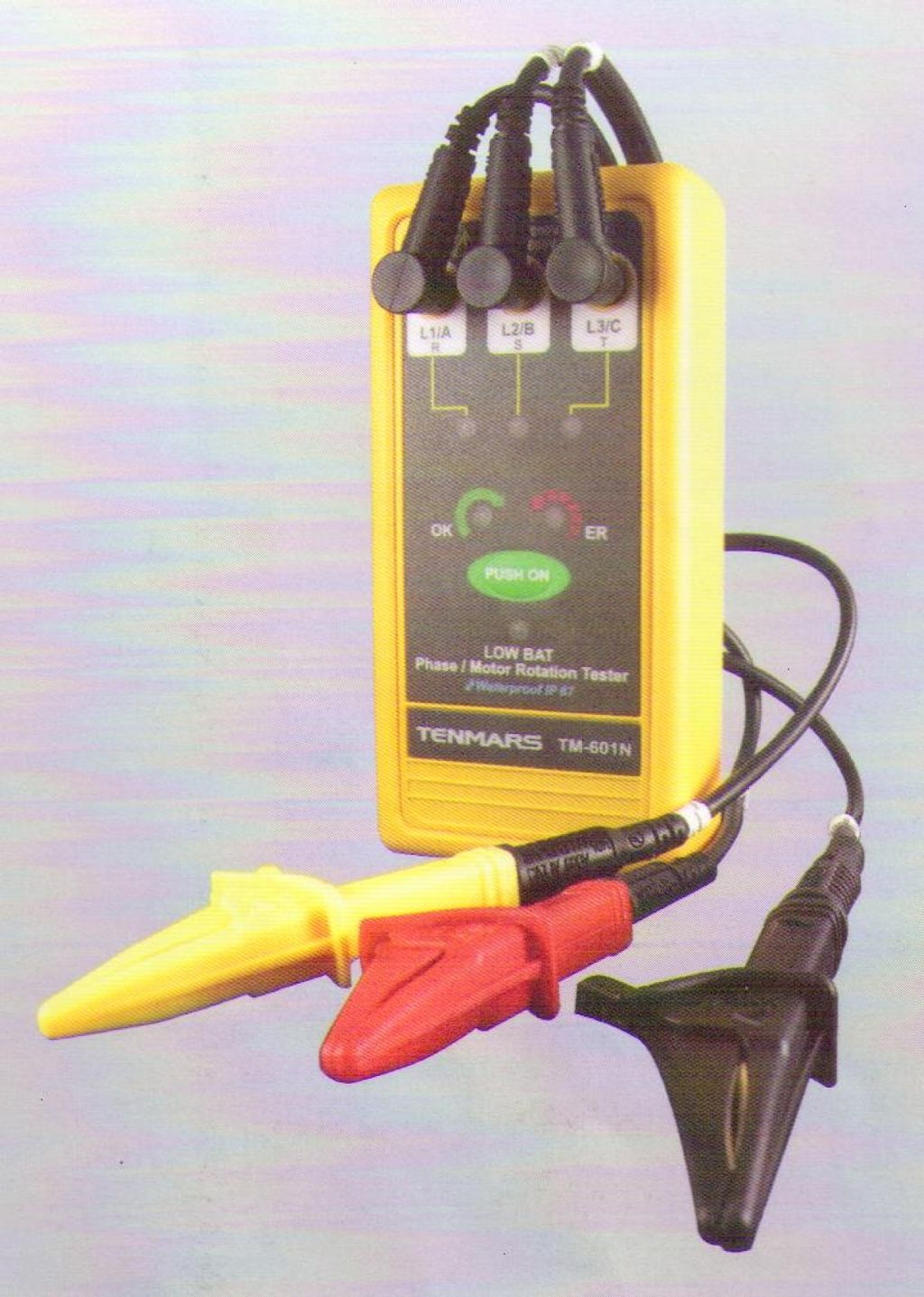

3-Phase / Motor Rotation Tester (TM601N)

RM 0.00


Model : TM601N

Functions :
- Display by LED indicators
- Check the 3 phase wires connection, L1-A-R, L2-B-S, and L3-C-T through the 3 red LED's to prove that each wire is connected correctly
- Check if L1, L2 and L3 are in connected to the 3 phase motor
- Check the motor's direction of rotation, and indicate "ER" (counter-clockwise) with a red LED and "OK" (clockwise) with a green LED
- Low battery indication

Specifications :
- CATIV 600V, CATIII 1000V
- Waterproof resist IP67
- Auto power off after 15 minutes
- Two 500 mA / 700V fuses protection meeting the UL requirements



3 phase to phase inputs voltage
45 to 600 VAC
Signal frequency range
45 to 400 Hz
Test currents (in per phase) less than
Approx. 3.5 mA
Motor power
6 - 500 W
Dimension
143 x 69 x 36 mm (LxWxH)
Weight
About 220g including battery
Power supply
9V battery

User guide for motor rotation tester TM601N Click-here


Terms & Conditions :

  • The above picture is for illustration only
  • All the above descriptions are subject to change without notice
  • Delivery charges will apply to buyers from Sabah, Labuan & Sarawak
  • International buyers, kindly contact us for shipping charges
  • Free Shipping Within Peninsular Malaysia Only
  • Delivery : approx. 3 to 5 working days ( Peninsular Malaysia )
                    approx. 7 to 10 working days ( Sabah, Labuan & Sarawak, subject to courier delivery schedule )
  • Country of origin : Taiwan
  • Warranty : 1 year against manufacturing defects only

    REMARKS : For warranty claim :-
    - There is NO one to one exchange
    - Instrument need to sent back to manufacturer for rectification, repair & re-calibration
