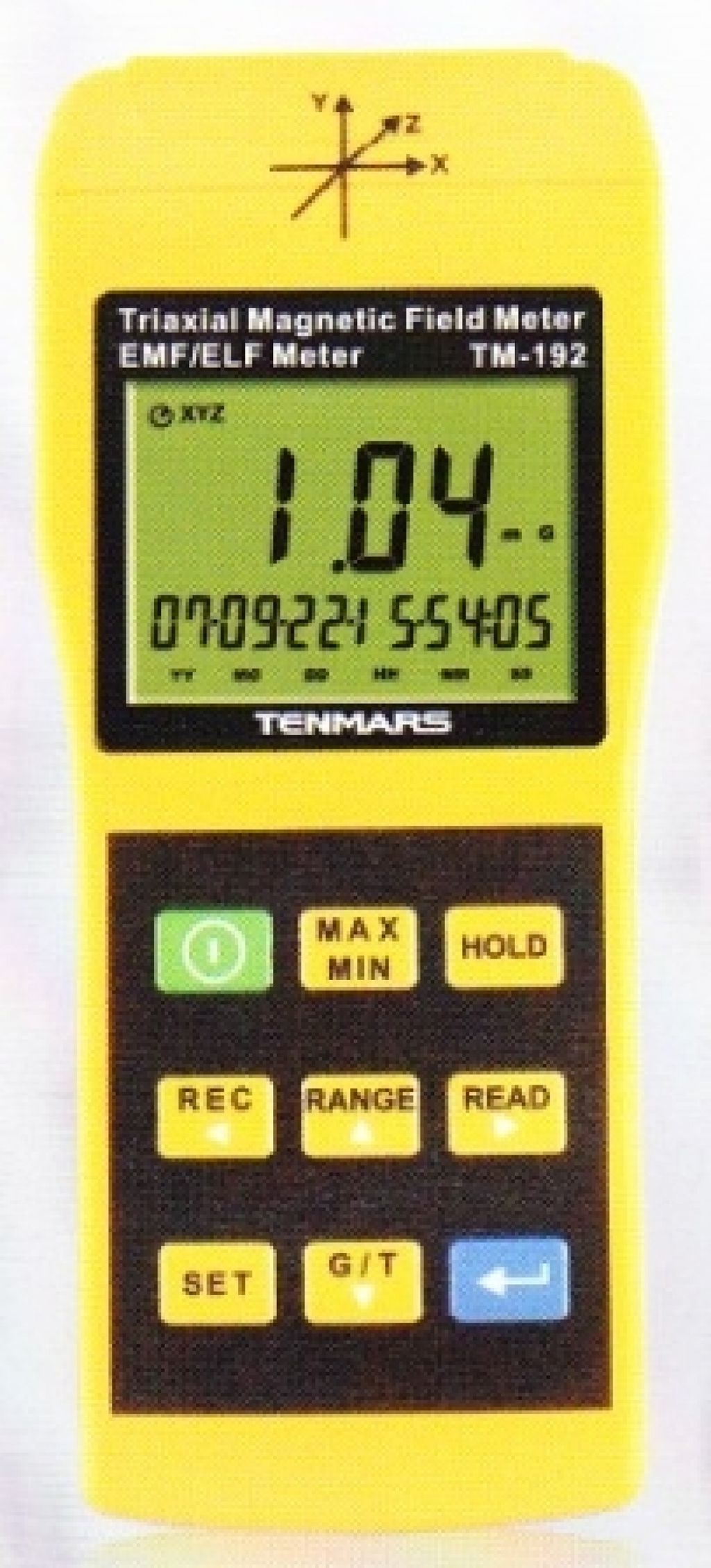

Gauss Meter (TM192D)
Model no : TM-192D
Applications :
- Triple LCD display to show X.Y.Z axis reading and plus average reading X+Y+Z / 3
- An electromagnetic wave simply means the wave motion of the electromagnetic field (EMF)
- This meter is applied to measuring electromagnetic fields of extremely low frequency (ELF) of 30 to 2000 Hz
- It is capable of measuring the electromagnetic field radiation intensity that is produced from electric transmission equipment, power line, microwave oven, air conditioner, refrigerator, computer monitor, video/audio device and so forth
- The magnetic field unit is Telsa(T), Gauss(G), milli-Gauss(mG) or micro-Telsa(uT)
1T=10,000G, 1uT=10mG, 1G=1,000mG
Functions :
- Switch between the display of micro-telsa and milli-Gauss is available
- Max./Min./AVG reading
- Data hold (HOLD), max and min (MAX/MIN) Hold function
- Low battery indication
- Overload indication "OL"
- Auto range
- Auto power off
- Real time clock with calendar
- Storage up to 500 readings
- USB interface, 9999 records data logger
Specifications :
| Display | 4 digits LCD, max. reading 9999 |
| Range | 20/2000mG, 2/20/200uT |
| Resolution | 0.1/1mG or 0.001/0.01/0.1uT |
| Accuracy | ±(2.5% + 5 digit) at 50/60Hz ±(5.0% + 5 digit) at 30 to 2000Hz |
| Sensor | triple axis |
| Frequency response | 30 to 2000Hz |
| Sample rate | 2.5 times per second |
| Battery | 9V |
| Battery life | approx. 100 hours |
| Operating temperature & humidity | 5°C to 40°C, below 80% RH |
| Weight | about 230g |
| Dimension | 173 x 80 x 32 mm (LxWxH) |
User guide for gauss meter TM192D
