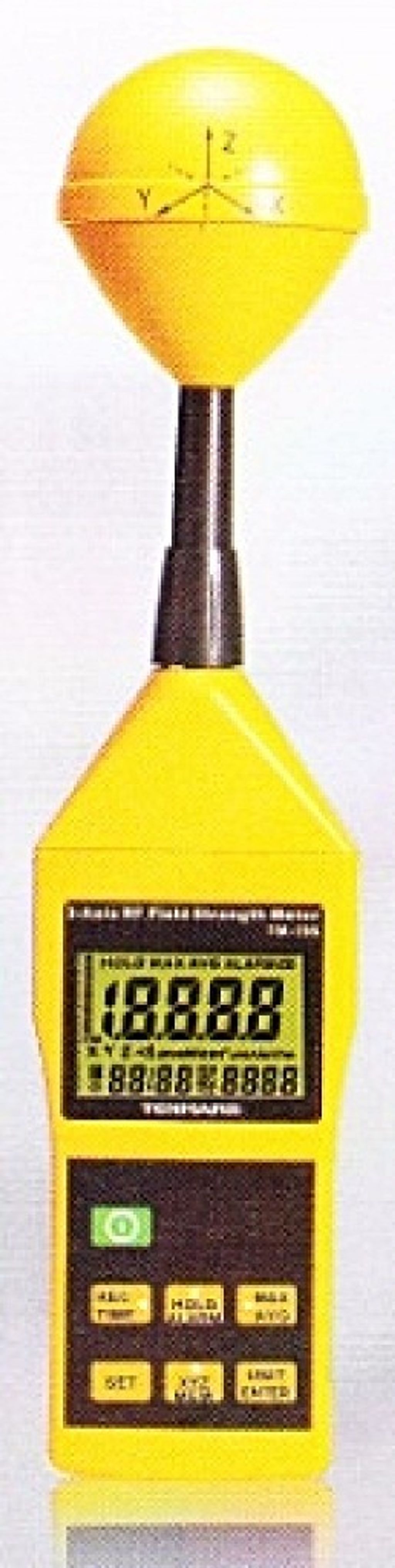

EMF Meter (TM196)

RM 0.00


Model no : TM-196

Specifications :

Measurement range38mV to 20 V/m
Display3-3/4 digits maximum reading 3999
Frequency range10Mhz to 8 GHz
Measurement unitsmV/m, V/m, µA/m, mA/m, µW/m², mW/m², µW/cm²
Display resolution0.1mV/m, 0.01V/m, 0.1µA/m, 0.001µW/m², 0.01mW/m², 0.001µ/cm²
Manual data memoryrecords maximum & average
Alarm functionadjustable threshold with on/off
Memory recalladjustable
Calibration factor CALthe CAL setting range is from 0.10 to 9.99
Sampling time1.5 times per second
Operating temperature & humidity0 to 50°C (32 to 122°F), max. 80% RH
Power supply9V battery
Battery lifeapprox. 15 hours
Sizemain instrument - 370 x 80 x 80 mm (LxWxH)

User guide for emf meter TM196 Click-here


Terms & Conditions :

  • The above picture is for illustration only
  • All the above descriptions are subject to change without notice
  • Delivery charges will apply to buyers from Sabah, Labuan & Sarawak
  • International buyers, kindly contact us for shipping charges
  • Free Shipping Within Peninsular Malaysia Only
  • Delivery : approx. 3 to 5 working days ( Peninsular Malaysia )
                    approx. 7 to 10 working days ( Sabah, Labuan & Sarawak, subject to courier delivery schedule )
  • Country of origin : Taiwan
  • Warranty : 1 year against manufacturing defects only

    REMARKS : For warranty claim :-
    - There is NO one to one exchange
    - Instrument need to sent back to manufacturer for rectification, repair & re-calibration



    For enquiries, kindly contact us @
    Tel : +6012 728 1063
    Email : enquiry@giitechnology.com
