Cable Tester (LC90)
Model no : LC-90
Display :
- Phase rotation indication by both audio and LED indicator, checking if currents of three different ratings are in proper phase. Phase open-circuit detection by indicator
Features :
- Test pin configuration for 10/100 base-T cable, 10 base-2 cable, RJ45 / RJ 11 modular cables, AT & T 258A cable, EIA / TIA 568A / 568B cables and token ring cables, etc
- Verify cable continuity, open, short and miss-wired
- Auto and manual scan function
- Ground wire test
- Locked status wire function
- Buzzer sound warning for defective wire detected
Specifications :
| Display | LED |
| Connectors | RJ-45 (8P8C) input / output |
| Power | 9V battery |
| Cables types | unshielded twisted pair (UTP100, Cat3, 4 & 5) foil- screened twisted pair (FTP100 and 120, Cat3, 4 & 5 ) shielded twisted pair (STP150 IBM type 1 & 6) |
| Remote terminators | sequence number #1 |
| Function keys | on/off, test, auto, lock, mamu, batt |
| Dimension | 130 x 56 x 38 mm (LxWxH) 72 x 23 x 24 mm (LxWxH) |
| Weight | about 250g |
| Recognize wiring schemes | EIA/TIA-568-A/B, USOC, 10 (100) Base / HUB, BNC/10 Base-2, 10(100) Base-T, Token ring |
Price for protection holster (PH01)
User guide for cable tester LC90

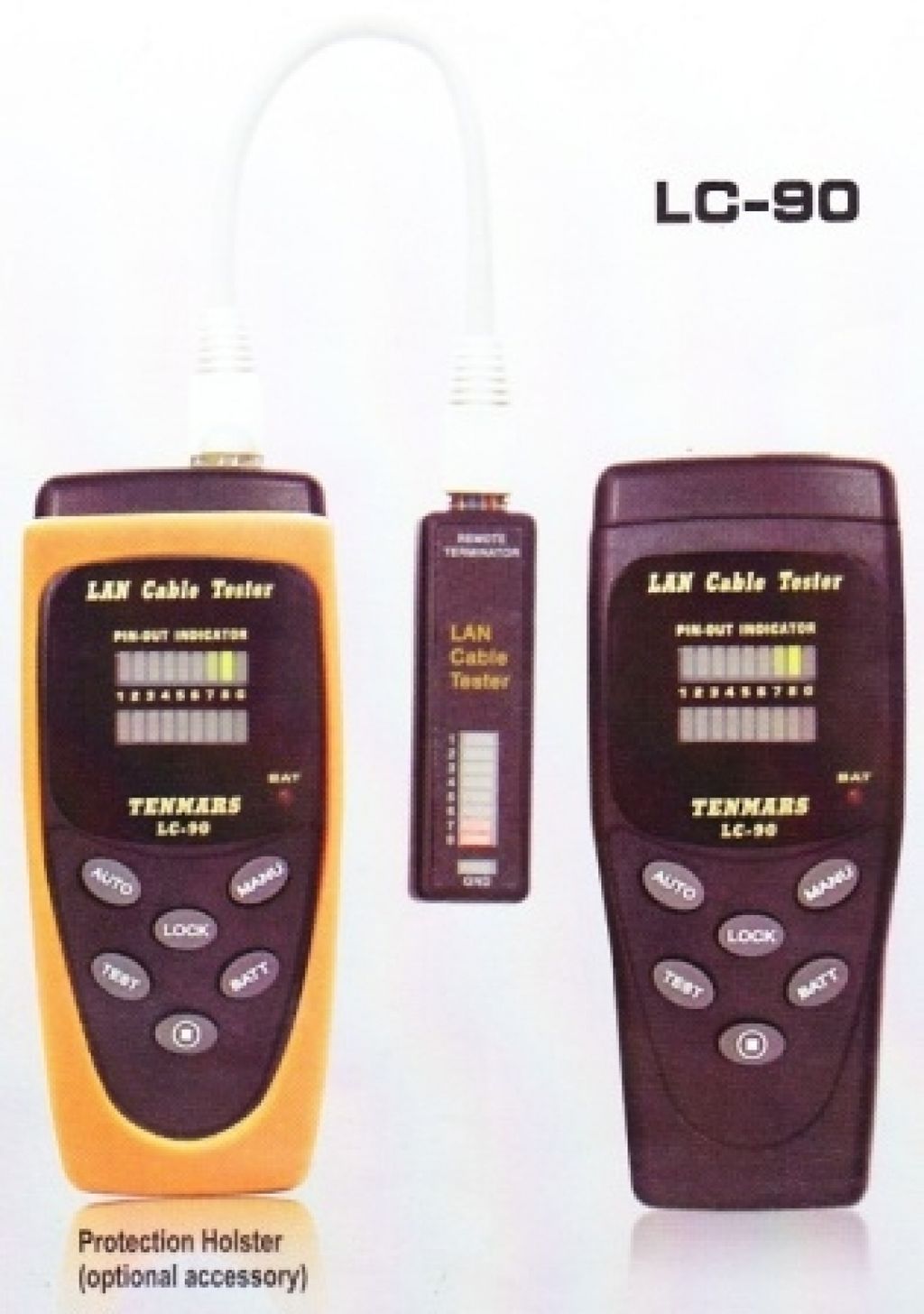

Protection holster (orange colour) is optional accessory. Not included with the unit. Need to purchase separately
Terms & Conditions :
- The above picture is for illustration only
- All the above descriptions are subject to change without notice
- Delivery charges will apply to buyers from Sabah, Labuan & Sarawak
- International buyers, kindly contact us for shipping charges
- Free Shipping Within Peninsular Malaysia Only
- Delivery : approx. 3 to 5 working days ( Peninsular Malaysia )
approx. 7 to 10 working days ( Sabah, Labuan & Sarawak, subject to courier delivery schedule ) - Country of origin : Taiwan
- Warranty : 1 year against manufacturing defects only
